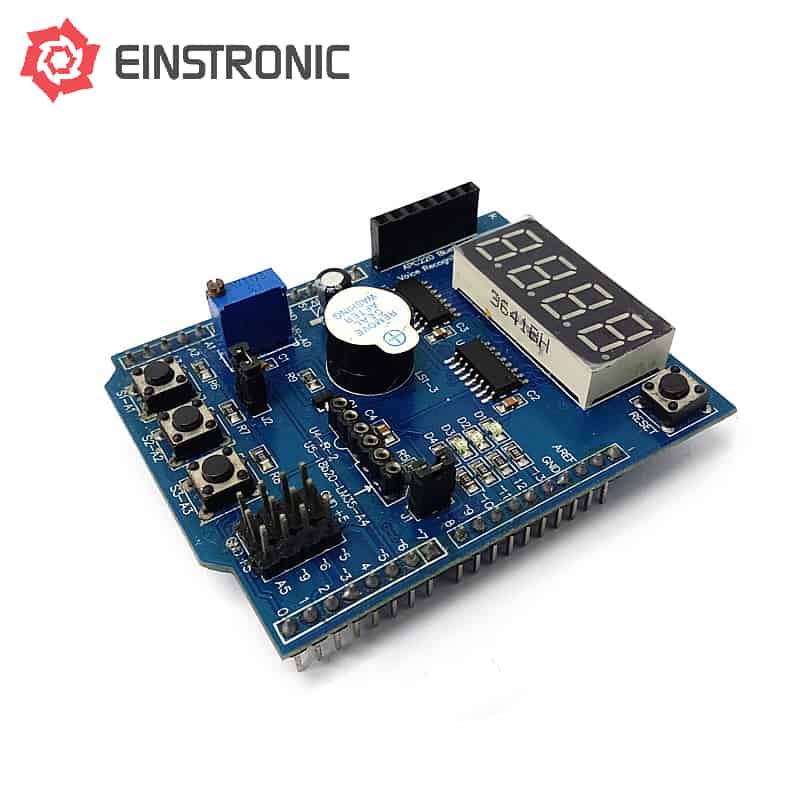

DescriptionModel : XD-203This shield is designed for Arduino Uno (or Mega) to access to a range of features which makes it ideal for beginners who wants to experiment and learn, or just as a general purpose shield for more advanced uses. Besides the feature rich range of components fitted to the shield, there are also a range of expansion.Features4 LEDs3 push buttonsReset buttonPiezo-buzzerAn LED display tube (four-digit, seven-segment)Two serial LED display driver ICs (74HC595)Multi-turn trimpot (10K)Port for DS18B20 temperature sensorPort for TSOP1838 infrared receiver moduleAPC220 wireless module interface (serial/UART interface) Schematic diagram Files & DocumentationTutorial with code : Getting Started With the Arduino Multifunction Shield – ElectroSchematicsCode : Multi Function Shield ExamplesArduino library
