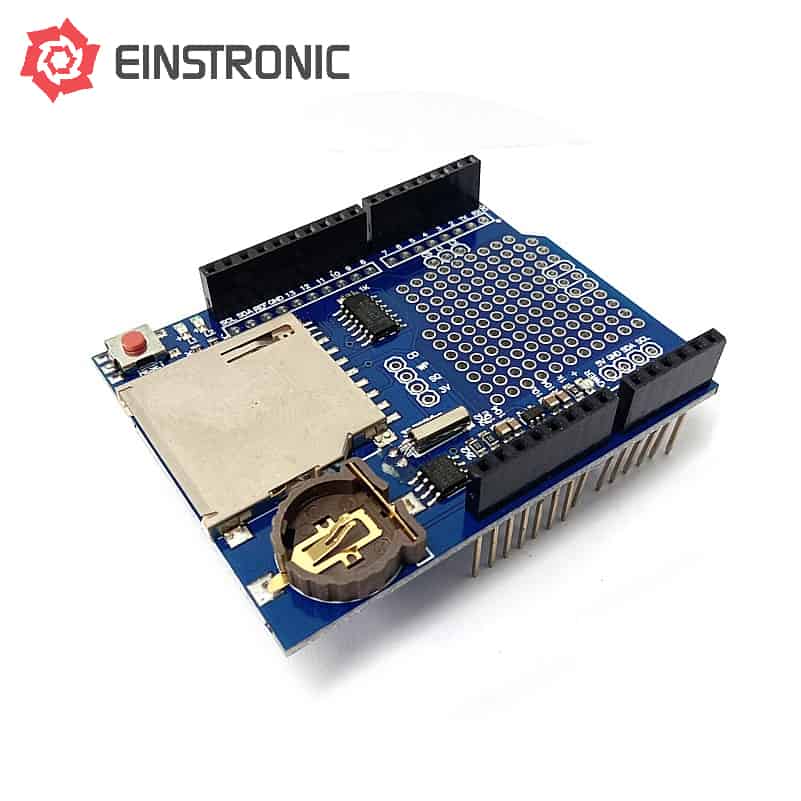

DescriptionModel : XD-204Note : Coin cell battery for RTC module is not included. The battery is probably CR1220 sized.This data logger shield provides an Arduino Uno, Leonardo, or Mega with the ability to log sensor data to an SD card with the minimum of set-up. It also has an array of prototyping space for you to build own permanent circuit on the shield.FeaturesReal Time Clock ModuleThe shield includes the very popular DS1307 battery backed real time clock (RTC). This RTC will keep an accurate track of the data and time for up to several years, even when then shield isn’t being powered.SD Card readerA standard SD card reader is provided to allow FAT16 or FAT32 formatted SD cards up to 32GB in size to be read or written to and is compatible with the standard SD card library. The shield also contains appropriate level shifting circuitry to protect the 3.3V interface of your SD card.Prototyping areaA very useful prototyping area consisting of a grid of pads on a standard 0.1″ pitch provide an area to add your own components such as sensors to interface to your Arduino board.LED’s L1 & L2Two additional LEDs have been added which can be mapped to any of your Arduino’s digital pins for use as visual indicators.Standard Arduino headers.The shield has a standard set of Arduino headers allowing additional compatible shields to be stacked. Files & DocumentationTutorial : How to Use Arduino Data Logger Shield to Save Data and Time to SD Card – Mybotic
