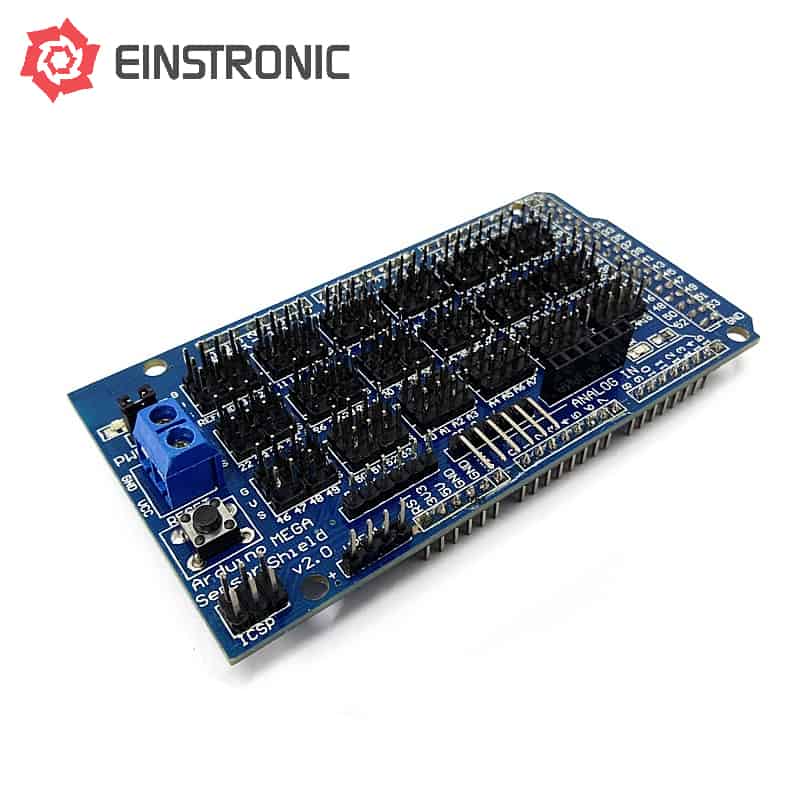

DescriptionMega sensor shield v2.0 allows you to hoop up the sensors directly to Arduino mega(1280) or Arduino mega (2560) or Arduino Mega (ADK) without the use of the breadboard. it also expand the mega with Bluetooth module communication interface, SD card module communication interface, APC220 radio-frequency module communication interface, RB URF v1.1 ultrasonic sensor interface and ICSP interface. easy to use for extension.FeaturesAll pin on Arduino Mega are extended to individual 3-way male header pinsConnection are arranged in SVG fashion which compatible with most servo motors and sensorsDesign to works with Arduino Mega 1280 or 2560 versionsSlot for Bluetooth module, SD card reader module, APC220 RF module, RB URF v1.1 ultrasonic sensor and ICSP interfaceOn-board LED power indicatorHas a reset buttonTerminal for connecting to 5V external power source Files & DocumentationLayout Diagram
