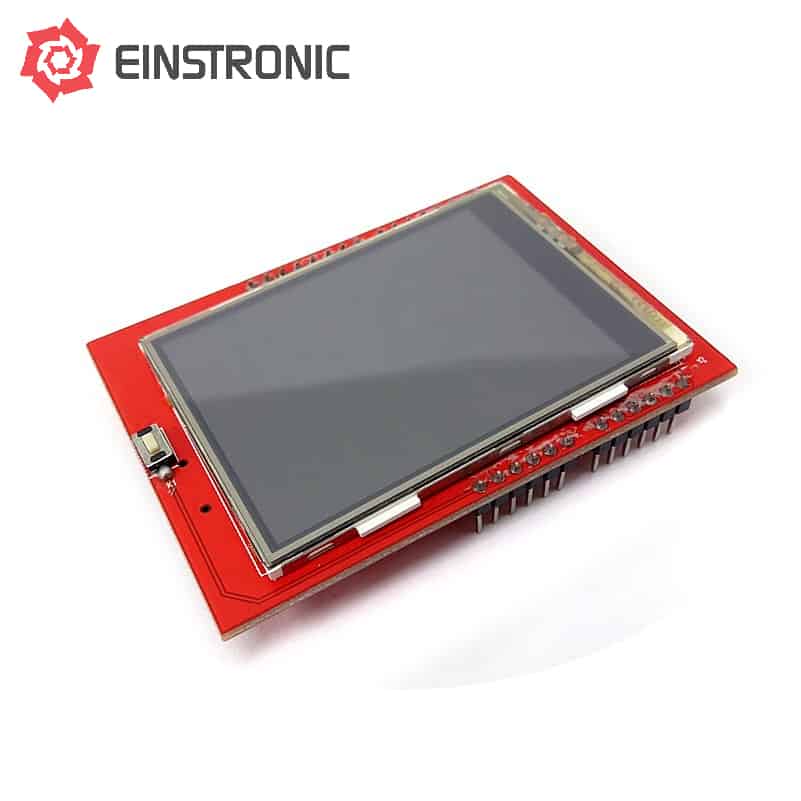

DescriptionThis is a shield equipped with a beautiful large touchscreen display shield with built in microSD card connection, designed to fit on an Arduino Uno (or Mega) to make human machine interactive projects. This TFT display has big (2.4? diagonal) bright (4 white-LED backlight) and colorful (18-bit 262,000 different shades), 240?320 pixels with individual pixel control. It has way more resolution than monochrome 128?64 pixel display. As a bonus, this display has a resistive touchscreen attached to it already, so you can detect finger presses anywhere on the screen.Features2.4″ diagonal LCD TFT displayScreen specification : 240?320 , 18-bit (262,000) color8-bit digital interface, plus 4 control linesUses digital pins 5-13 and analog 0-3. That means you can use digital pins 2, 3 and analog 4 and 5. Pin 12 is available if not using the microSDWorks with Arduino Uno or Mega (Leonardo not supported yet)Operating voltage : 3.3 – 5VHas on-board 3.3V 300mA LDO regulator4 white LED backlight. On by default but you can connect the transistor to a digital pin for backlight control4-wire resistive touchscreenMicro SD slotDimension : 71 x 52 x 7 mm Files & DocumentationTutorial with code : Arduino 2.4? Touch Screen LCD Shield Tutorial – Electropeak
